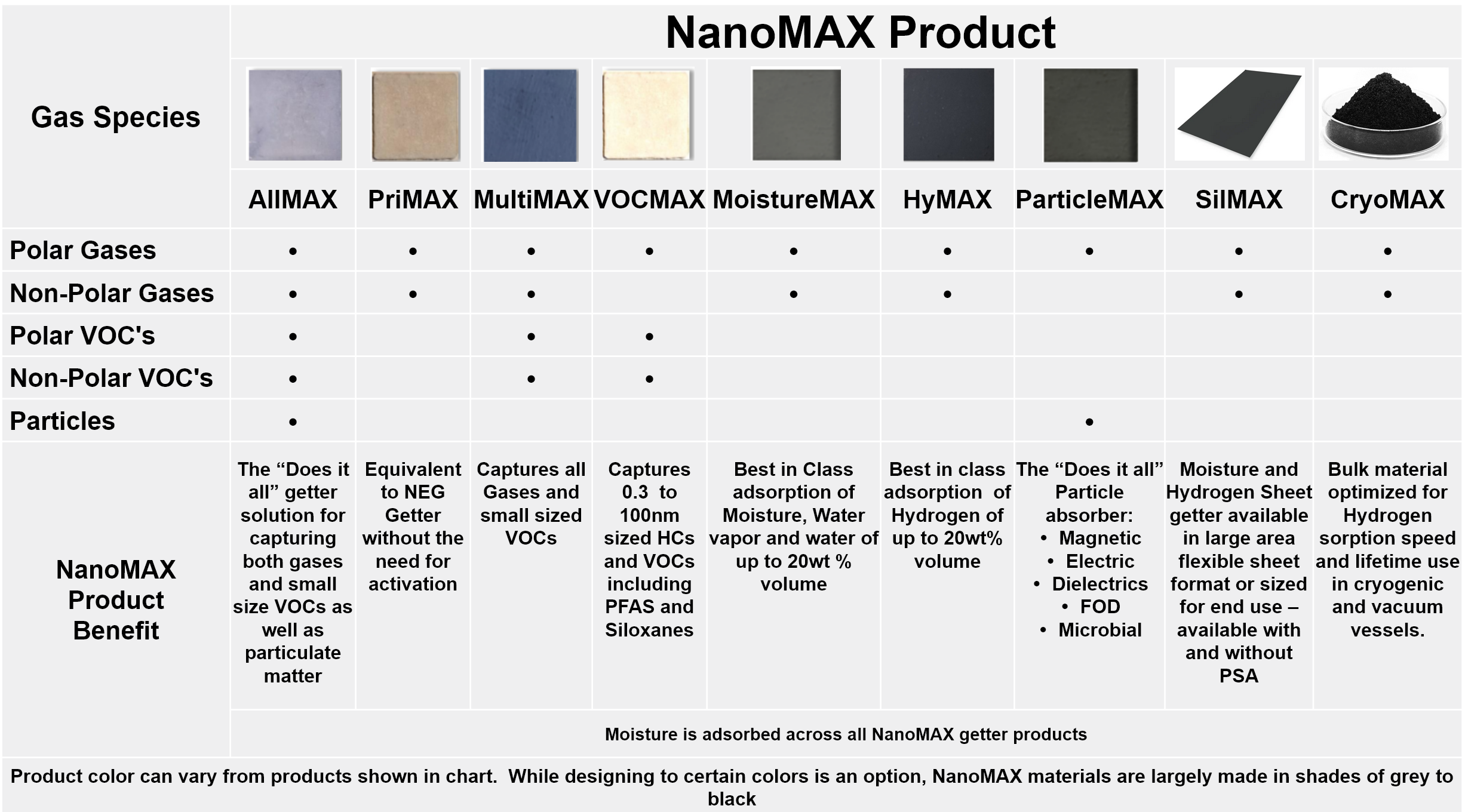

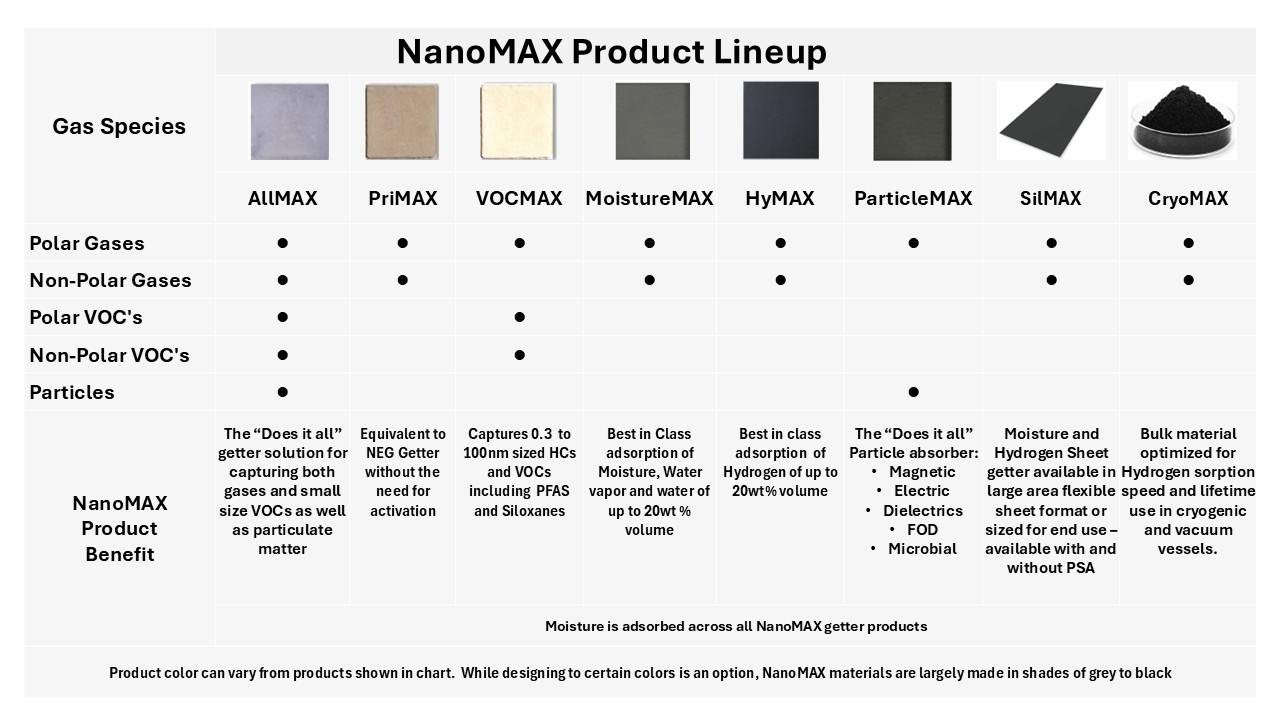

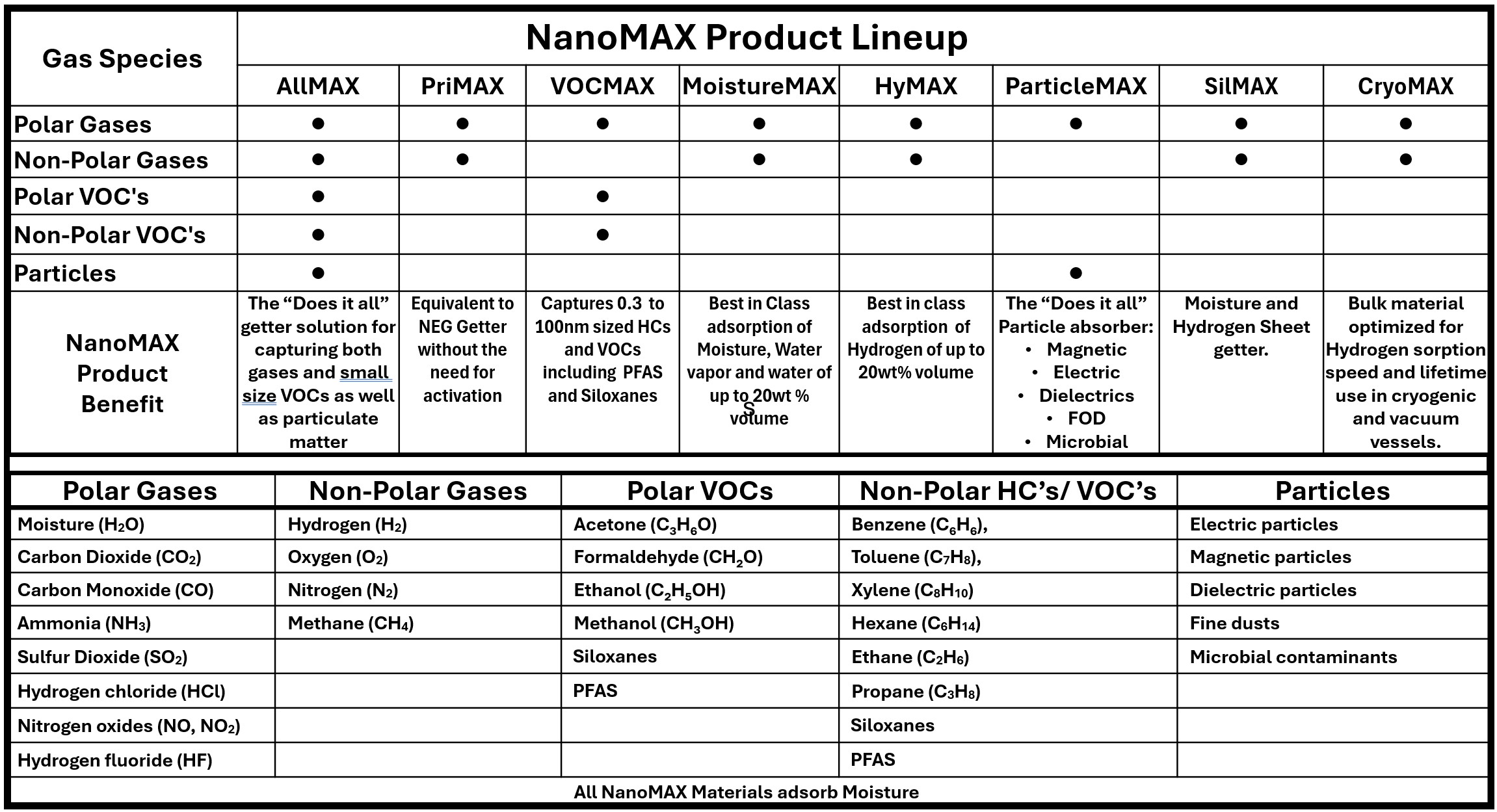

NanoMAX technology introduces a new cutting-edge solution in getter technology that leverages nanomaterials for superior performance in gas, moisture, organic, and particle scavenging applications. This next-generation system is designed to deliver exceptional efficiency and reliability under extreme and demanding conditions. The NanoMAX line of getters effectively eliminates harmful contaminants to ensure long-term reliability and enhanced performance across diverse technologies, products, and markets.
High Performance Multi-Gas Getter

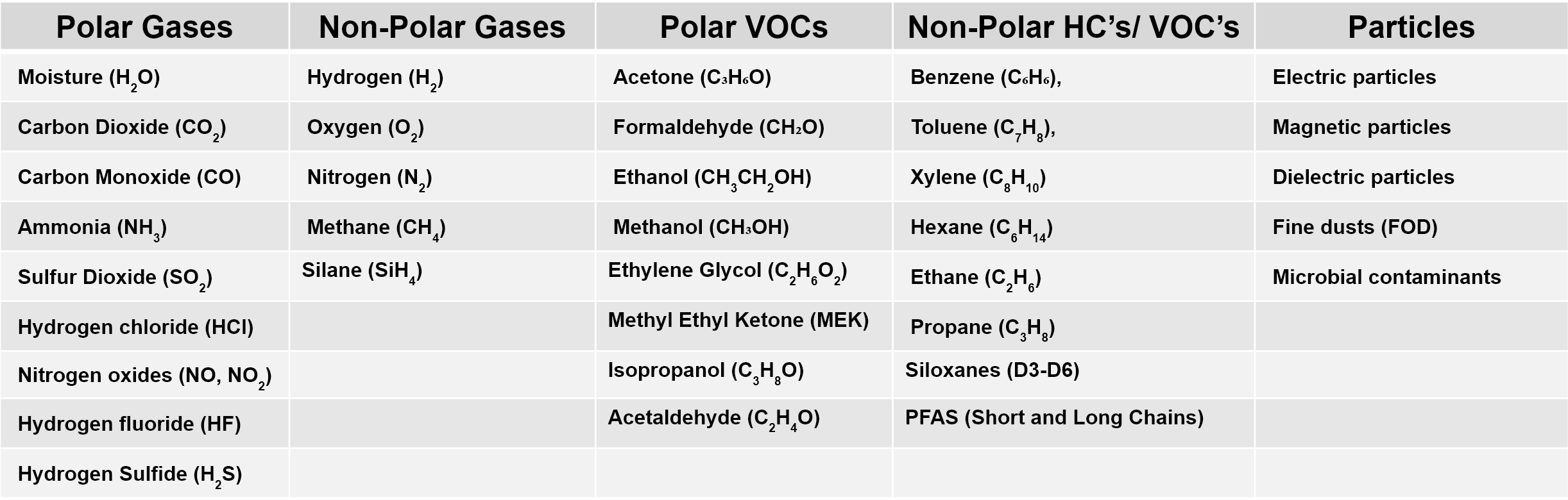

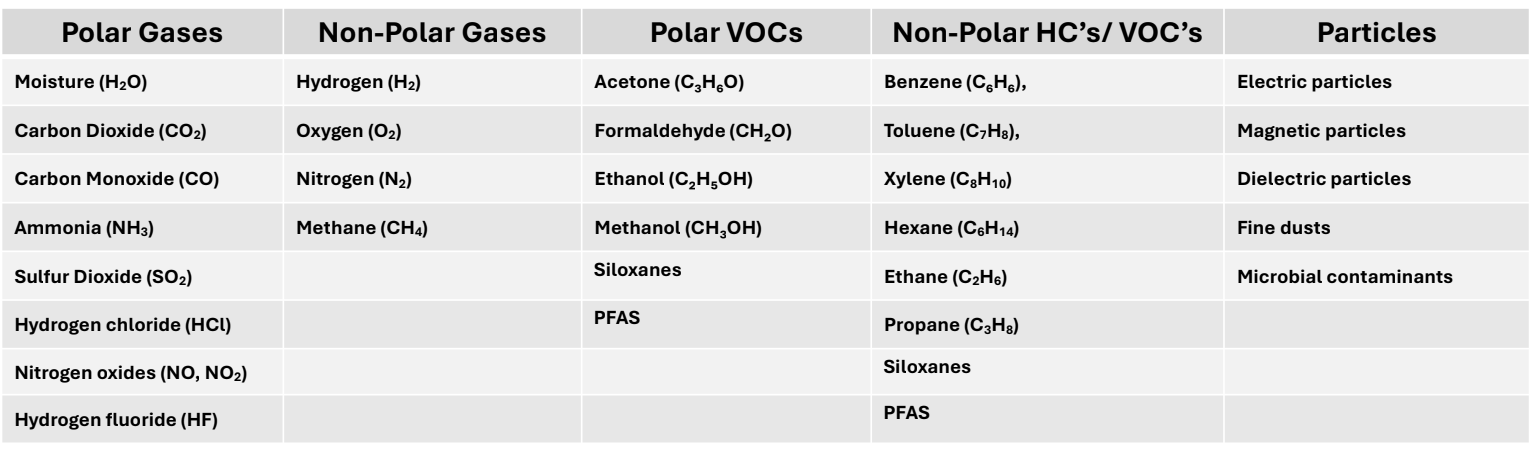

- Gaseous Adsorption: Polar gases (H2O, CO2, CO, NH3 etc.) and non-polar (H2, O2, N2, SiH4 etc.)
- Organics Adsorption: Polar HCs/VOCs and Non-Polar HCs/VOCs
- All-in-One Solution: Effectively adsorbs polar and non-polar gases and HCs/VOCs.
- Versatile Sizes: Available in standard and customized sizes to fit any enclosure.
- Lightweight & Low Profile: Ensures superior performance without adding bulk.
- Easy Application: Can be applied to any surface using our high-temperature adhesive films or the
epoxy of your choice. - Wide Temperature Range: Functions efficiently from -55°C to +300°C.
- No Activation Required: Ready to use without the need for activation or regeneration.
- Long Shelf Life: Retains effectiveness for up to 2 years from the date of purchase.
High Performance Gases/VOCs/Particle Multi-functional Getter
- Gaseous Adsorption: Polar gases (H2O, CO2, CO, NH3 etc.) and non-polar (H2, O2, N2, SiH4 etc.)
- Organics Adsorption: Polar HCs/VOCs and Non-Polar HCs/VOCs
- Particulate Matter Capture: Particles of Magnetic, Electric, Dielectric, Fine dust/FOD, and
Microbial Contaminants - All-in-One Solution: Effectively adsorbs both polar and non-polar gases, VOCs, and particulates.
- Versatile Sizes: Available in standard and customized sizes to fit any enclosure.
- Lightweight & Low Profile: Ensures superior performance without adding bulk.
- Easy Application: Can be applied to any surface using our high-temperature adhesive films or the
epoxy of your choice. - Wide Temperature Range: Functions efficiently from -55°C to +300°C.
- No Activation Required: Ready to use without the need for activation or regeneration.
- Long Shelf Life: Retains effectiveness for up to 2 years from the date of purchase.
High Performance Prime Gas Getter
- Gaseous Adsorption: polar gases (H2O, CO2, CO, NH3) and non-polar (H2, O2, N2, CH4, and SiH4)
- All-in-One Solution: Effectively adsorbs polar gases, non-polar gases, and weakly HCs/VOCs.
- Versatile Sizes: Available in standard and customized sizes to fit any enclosure.
- Lightweight & Low Profile: Ensures superior performance without adding bulk.
- Easy Application: Can be applied to any surface using our high-temperature adhesive films or the
epoxy of your choice. - Wide Temperature Range: Functions efficiently from -55°C to +300°C.
- No Activation Required: Ready to use without the need for activation or regeneration.
- Long Shelf Life: Retains effectiveness for up to 2 years from the date of purchase.
High Capacity Moisture Getter
- High Moisture Adsorption: The adsorption capacity for moisture can be from 10wt% to 20wt% under 30-60%RH and ambient environments.
- Water Vapor Adsorption: The adsorption capacity for water vapor can be from 30wt% to 40wt% under 60-100%RH and ambient environments.
- Versatile Sizes: Available in standard and customized sizes to fit any enclosure.
- Lightweight & Low Profile: Ensures superior performance without adding bulk.
- Easy Application: Can be applied to any surface using our high-temperature adhesive films or
the epoxy of your choice. - Wide Temperature Range: Functions efficiently from -55°C to +300°C.
- No Activation Required: Ready to use without the need for activation or regeneration.
- Long Shelf Life: Retains effectiveness for up to 2 years from the date of purchase.
High Performance Hydrocarbons and Volatile Organic Compounds Getter
- Capture of HCs/VOCs: polar HCs/VOCs and non-polar HCs/VOCs
- Moisture/water vapor adsorption: 10-20 wt% moisture and 30-40wt% water vapor adsorption.
- All-in-One Solution: Effectively adsorbs both various HCs/VOCs and moisture/water vapor.
- Versatile Sizes: Available in standard and customized sizes to fit any enclosure.
- Lightweight & Low Profile: Ensures superior performance without adding bulk.
- Easy Application: Can be applied to any surface using our high-temperature adhesive films or the epoxy of your choice.
- Wide Temperature Range: Functions efficiently from -55°C to +300°C.
- No Activation Required: Ready to use without the need for activation or regeneration.
- Long Shelf Life: Retains effectiveness for up to 2 years from the date of purchase.
High Performance Particulate Matter Getter
- Capture of Particulate Matter: Electric, magnetic, dielectric, fine dust, foreign object debris (FOD), and microbial contaminants.
- Moisture/water vapor adsorption: 10-20 wt% moisture and 30-40wt% water vapor adsorption.
- All-in-One Solution: Effectively adsorbs both various particles and moisture/water vapor.
- Versatile Sizes: Available in standard and customized sizes to fit any enclosure.
- Lightweight & Low Profile: Ensures superior performance without adding bulk.
- Easy Application: Can be applied to any surface using our high-temperature adhesive films or the epoxy of your choice.
- Wide Temperature Range: Functions efficiently from -55°C to +300°C.
- No Activation Required: Ready to use without the need for activation or regeneration.
- Long Shelf Life: Retains effectiveness for up to 2 years from the date of purchase.

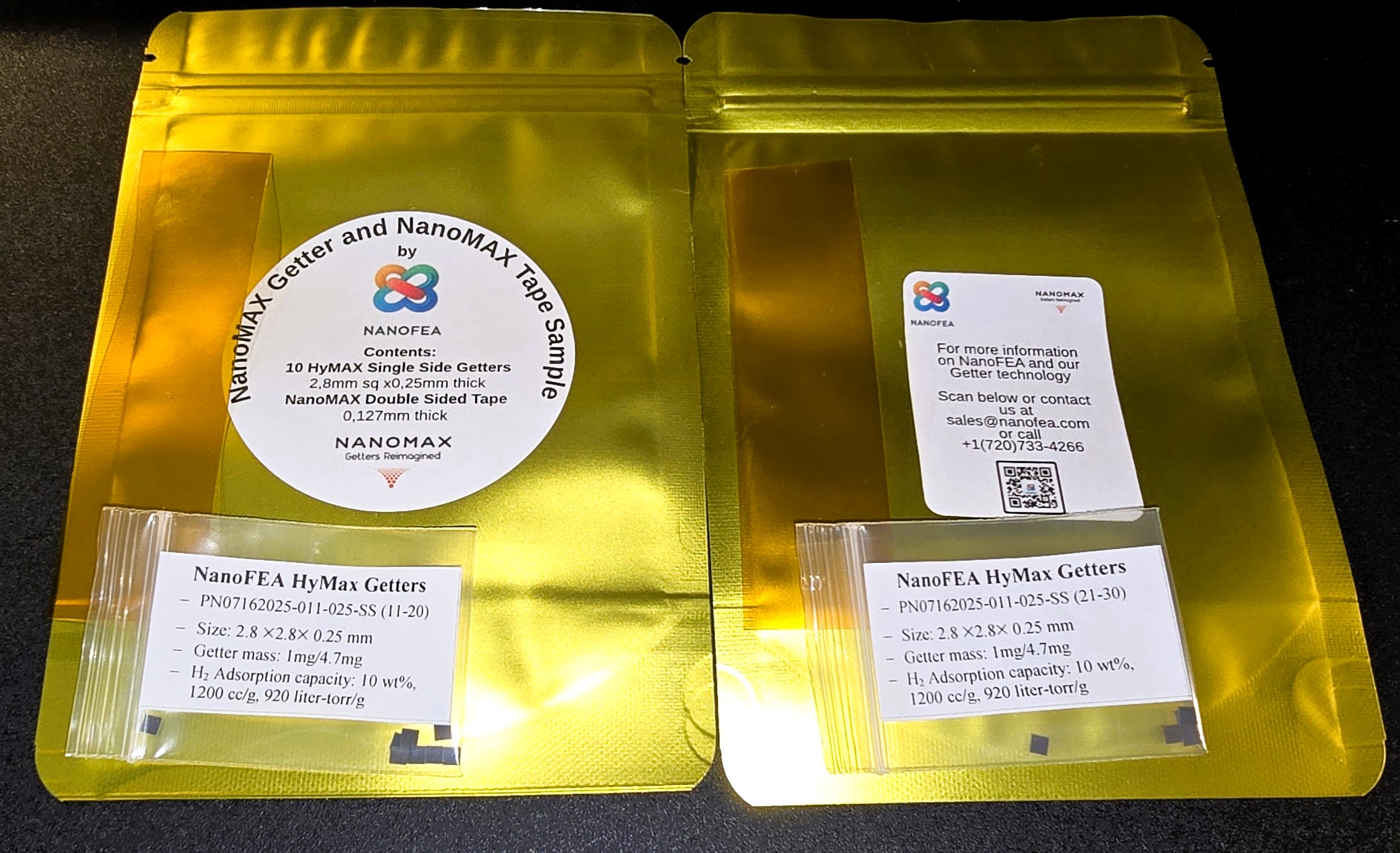

HyMAX and HyMAX-HT Getter
- The HyMAX product offers users with two product solutions to cover a broad range of operating temperatures.
- HyMAX’ recommended operating temperatures are -55°C to +125°C while
- HyMAX-HT operates from the cryogenic temperature of -162°C to +300°C
- Very high Hydrogen Adsorption: The adsorption capacity of the HyMAX system is unparalleled with adsorption volumes from 5 to 20wt% volume with the HyMAX system adsorbing 5 to 10wt% while the HyMAX-HT system adsorbs 10 to 20wt%
- Versatile Sizes: Available in standard and customized sizes to fit any enclosure.
- Lightweight & Low Profile: Ensures superior performance without adding bulk.
- Easy Application: Can be applied to any surface using our high-temperature adhesive films or the epoxy of your choice.
- No Activation Required: Ready to use without the need for activation or regeneration.
- Long Shelf Life: Retains effectiveness for up to 2 years from the date of purchase.
High Performance Bulk Cryogenic Getter
- Fine Grain Black powder supplied in 100, 500 and 1000g bottles.
- Material Built for Hydrogen Control in Vacuum Insulation.
- High Capacity for the lifetime of the cryogenic system.
- High initial adsorption speed to deal with the initial service.
- No activation required.
High Performance Flexible Film Getter
- Legacy Technology for use in established Bills of Material.
- Thin Molded Large area sheets that can be cut, die cut, laser cut, water jet or stamped to size.
- Protected with Mylar release liners on both sides
- Flexible from -55°C to 150°C
- Sorption Capacity of H2 of 45cc/gram of getter material
- Moisture capacity of 3 to 5 wt%
- Thermally Stable to 200°C
- Material is available with or without PSA
- Parts molded to size are available
- Standard bakeout required
